MODULAR X-RAY RESCON RELATIVE PERMEABILITY & EOR SYSTEM

Our modular system mainly consists of compact heating cabinets for a wide verity of use cases. For most type of core analysis, such as:

  • Primary Drainage/Imbibition

  • Surfactant injection/Polymer injection

  • WAG,  Miscible displacements

MODULES

Pumps

  • Local heating of pump-barrel.

  • Recirculating setup with either Vindum or Quizix.

Instrument cabinets

Shelves & cabinets for misc

  • Overburden pump, LCR-meter

Linear X-ray scanner

  • Locally shielded x-ray with safety PLC

  • One or two sample positions. Allows you to run two experiments in parallel.

  • Heated sample cabinets

  • Options: Tiltable

Valve manifold

  • Locally heated, actuated from outside heated zone.

  • Logically organized, easy to recognize in PID.

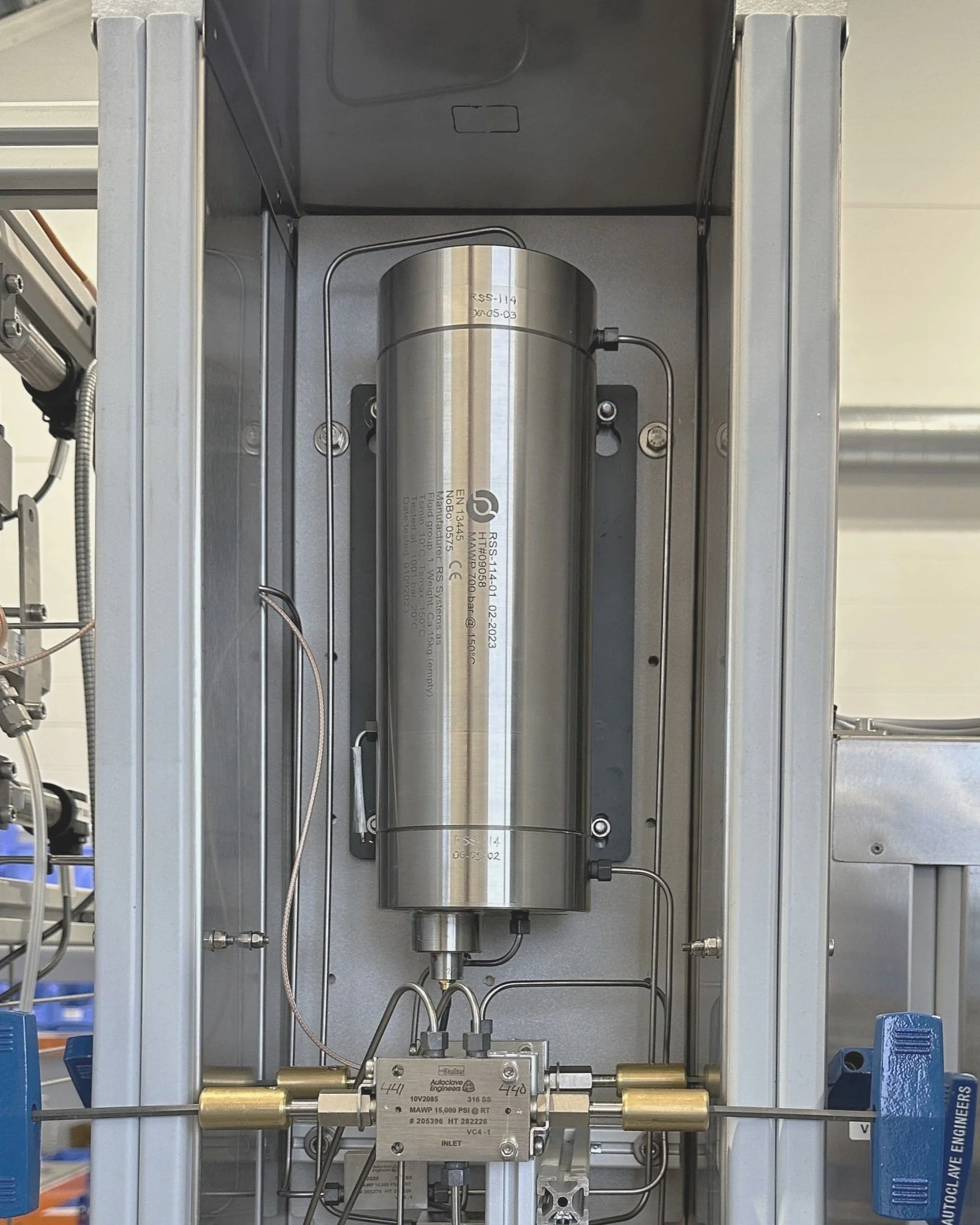

Sample cabinet

  • X-ray transparent

  • Heated

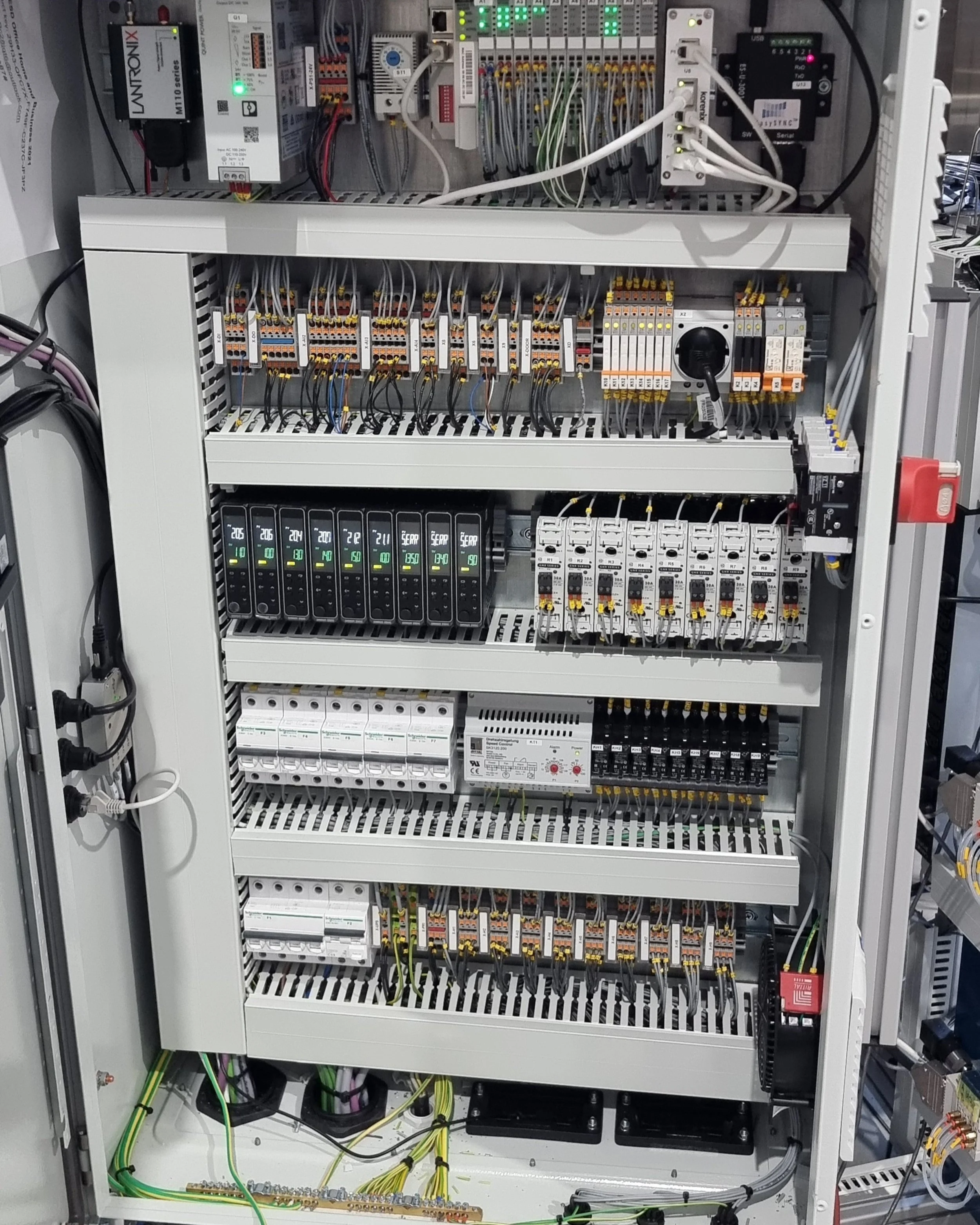

Electrical & control cabinet

  • PLC, PC, UPS

OPTIONAL

  • Dual sensing temp
    (2x PT100)

  • SMS alert alarms

  • Tiltable X-ray scanner

  • Heated flow lines

STANDALONE ACCESSORIES

  • Gasmeter (optional with sampler)

  • Pneumatic auto-sampler

  • Low pressure visual separator (optional with camera)

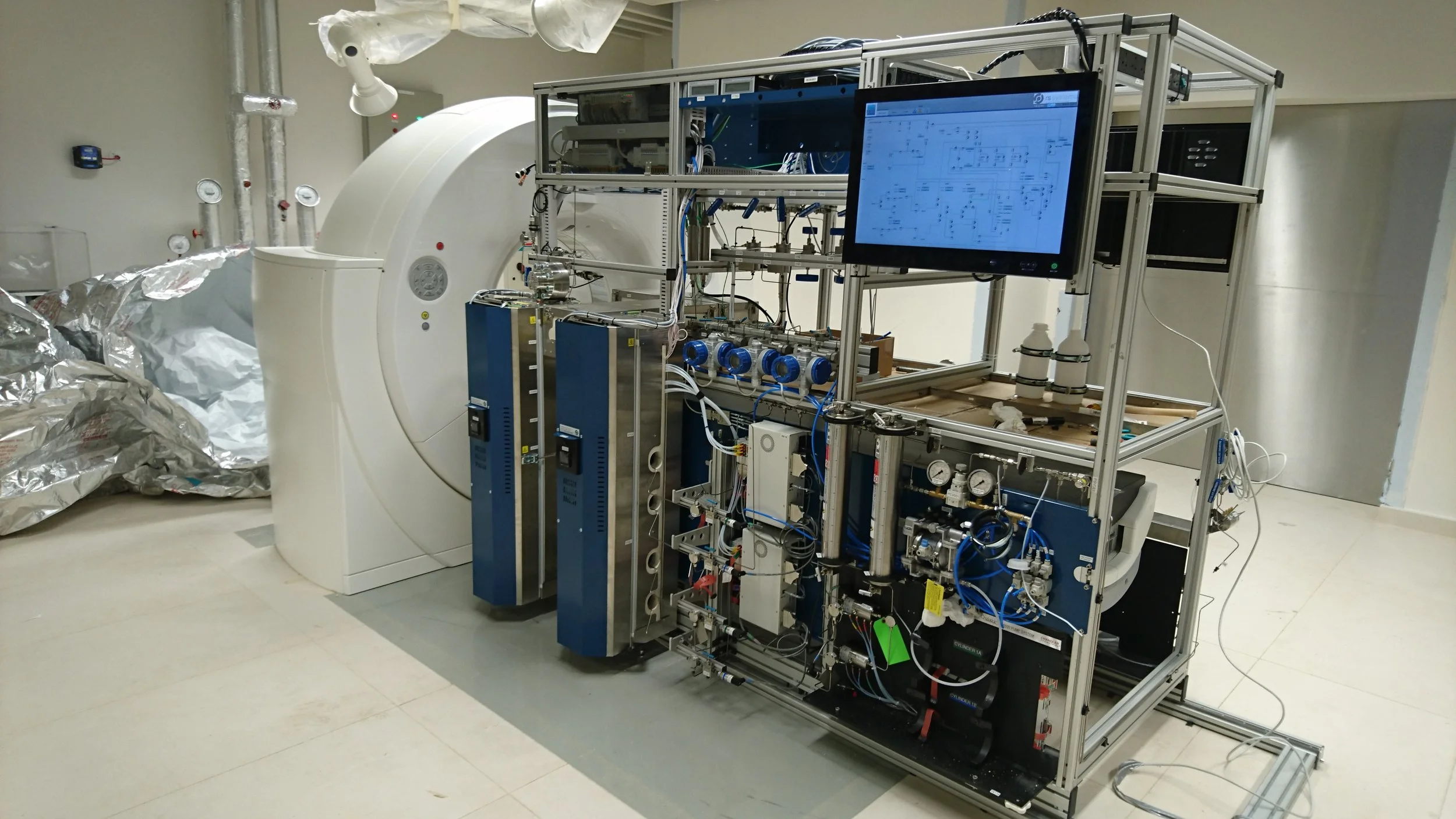

Flooding system on linear rails to follow CT-scanner.

Flooding system on linear rails to follow CT-scanner.

Flooding system with heated sample cabinet together with an 3. party 2d x-ray.

Flooding system with heated sample cabinet together with an 3. party 2d x-ray.

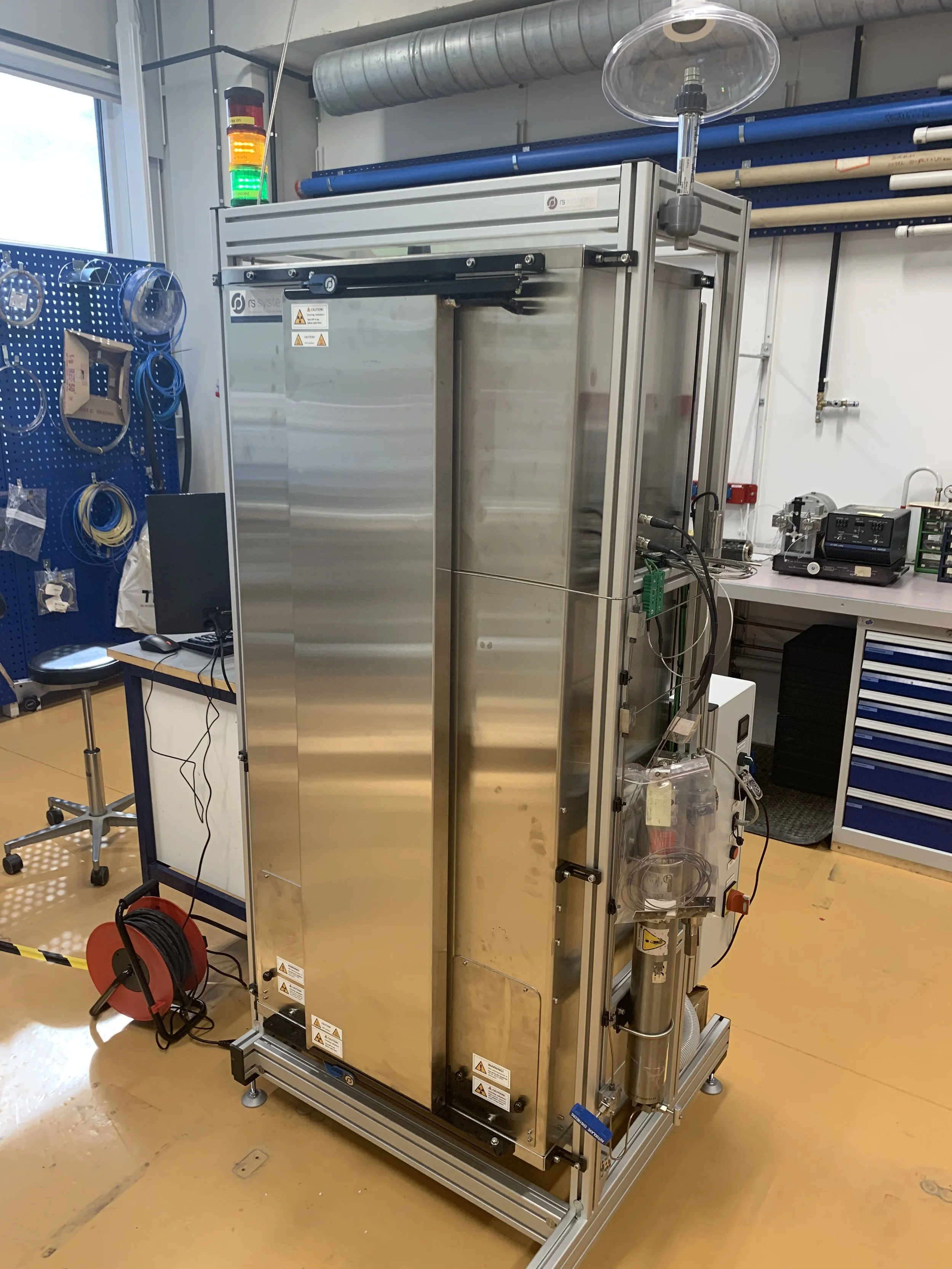

Standalone tiltable linear x-ray scanner.

Standalone tiltable linear x-ray scanner.

Tiltable linear x-ray scanner with flooding system.

Tiltable linear x-ray scanner with flooding system.

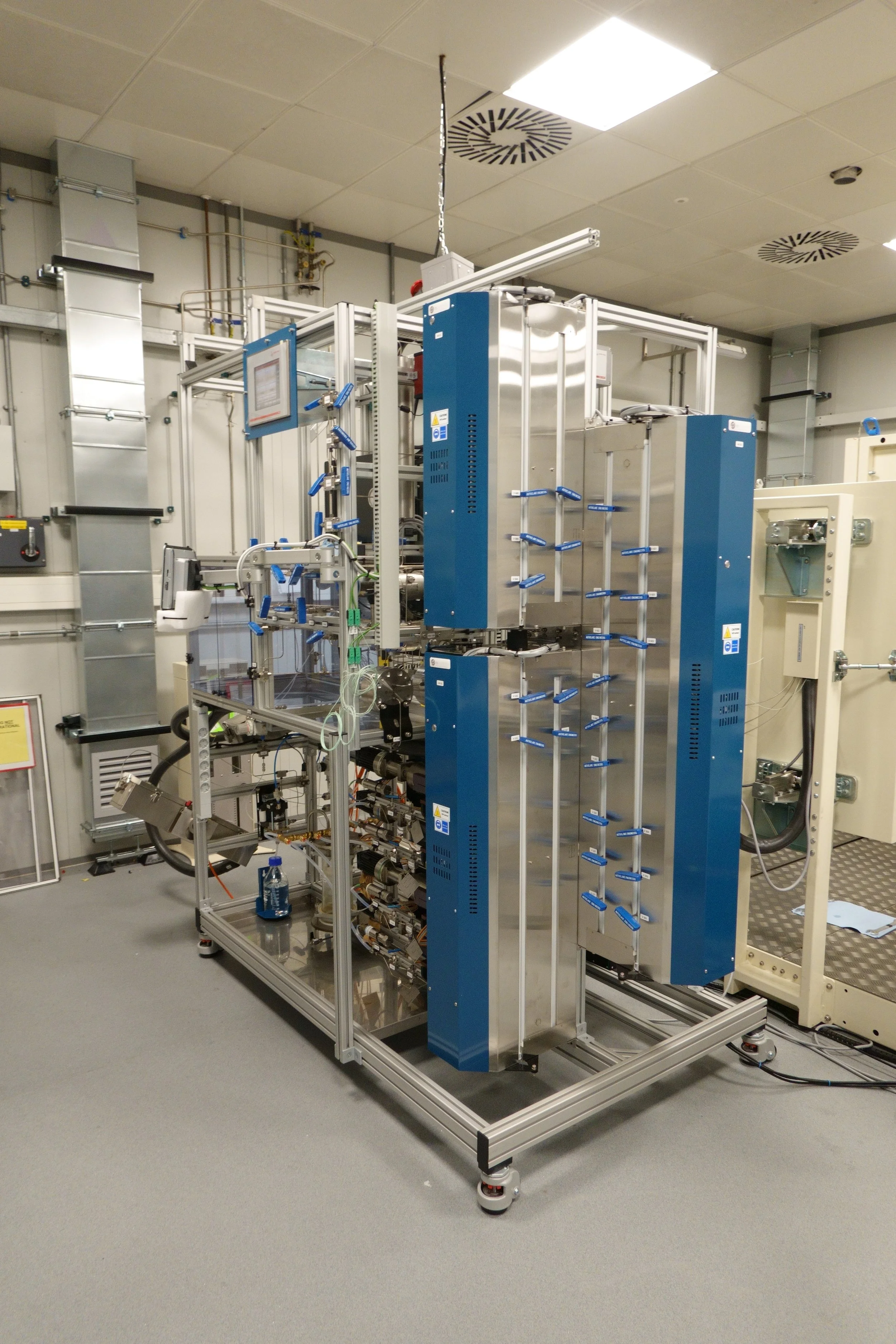

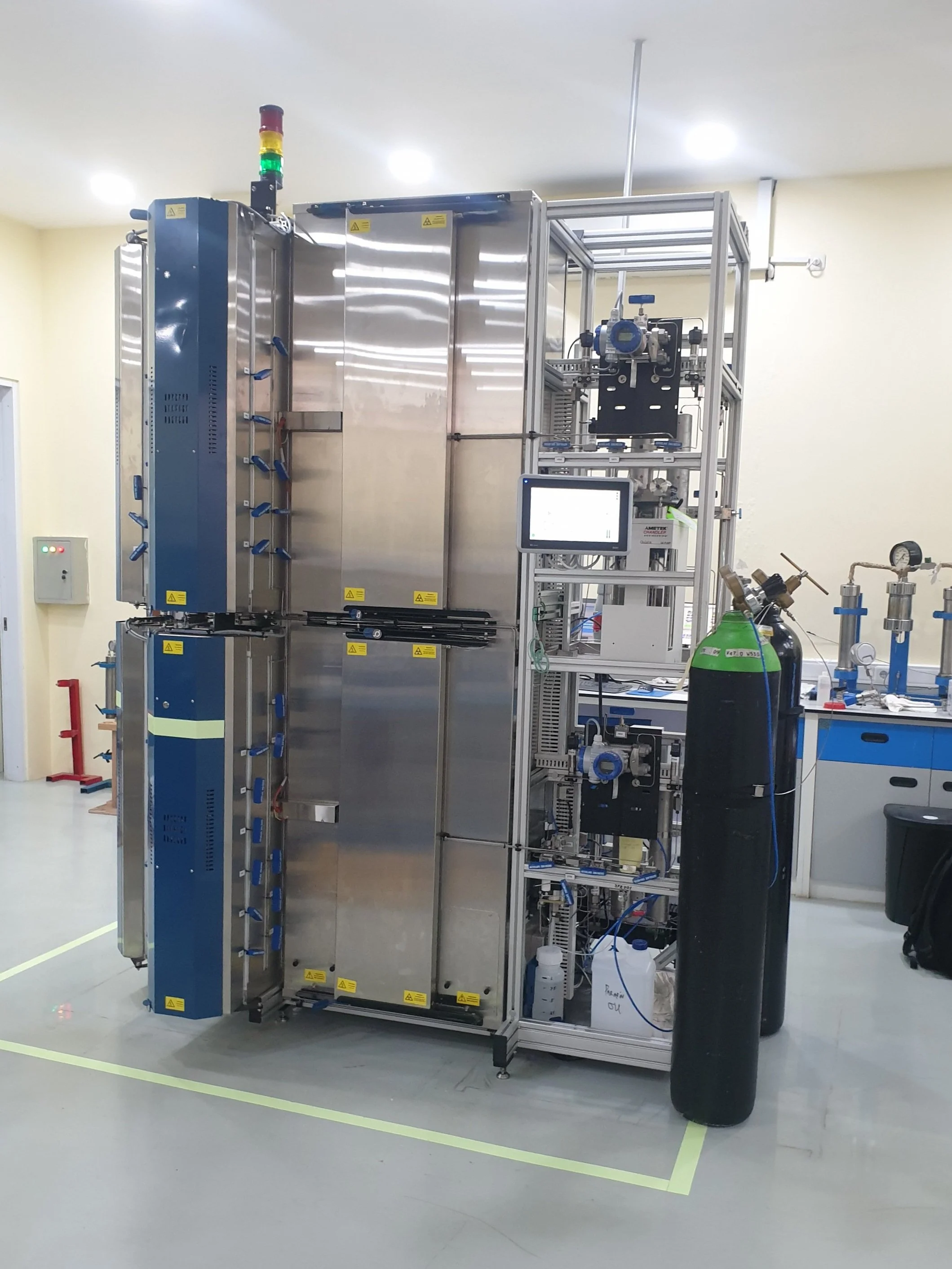

Complete system with Double position linear x-ray scanner and rescon system.

Complete system with Double position linear x-ray scanner and rescon system.
