Capillary Pressure and Resistivity Index rig

Our PcRI rigs are plc controlled systems for measuring capillary pressure and electrical property using refined or reservoir fluids. Special oil and water-wetted porous plates allows for both drainage and imbibition processes.

Key features

  • Easy to use interface, with touchscreen and PLC

  • Samples placed in temperature controlled cabinets (30°C - 100°C)

  • Automatic close-in capillary pressure in case of power failure.

  • Standarized layout with 8 coreholders per cabinet.

  • Up to 700bar confining pressure.

Optional features

  • Individual pressure control

  • Coreholder with 4-point electrode

  • Automatic volume and resistivity log

  • Temperature 120°C or 150°C

  • In-Situ Saturation by X-ray or Isotope (ISSM)

  • X-ray transparent Core Holders (for ISSM)

Sleeve with ports for resistivity probes.

Quick load core holders

PcRI installed in 2022 with four small acoustic separator.

PcRI installed in 2022 with four small acoustic separator.

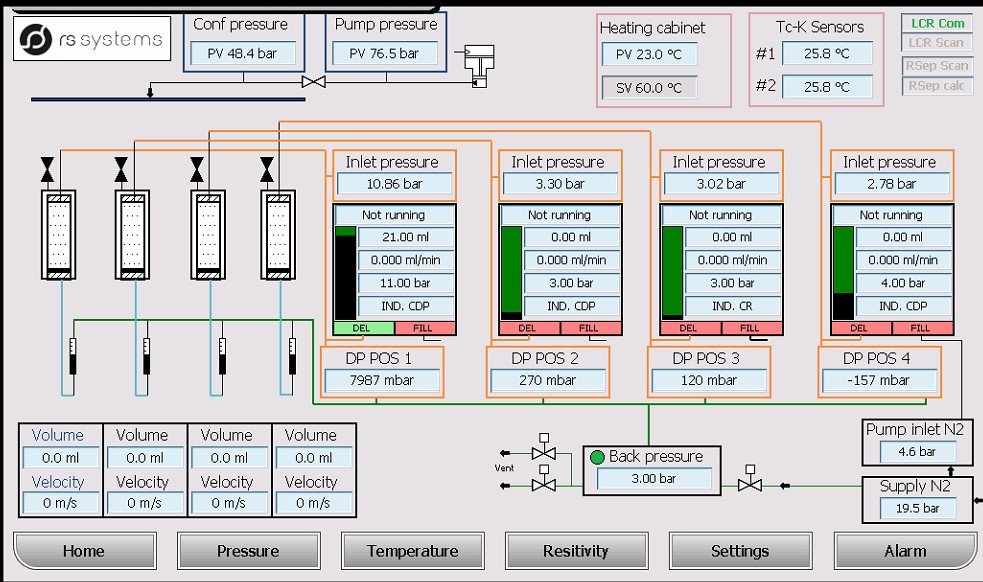

Example of GUI (touchscreen).

Example of GUI (touchscreen).

Example of PcRI rig layout.

Example of PcRI rig layout.

PcRI rig in use with 8x standard coreholders.

PcRI rig in use with 8x standard coreholders.

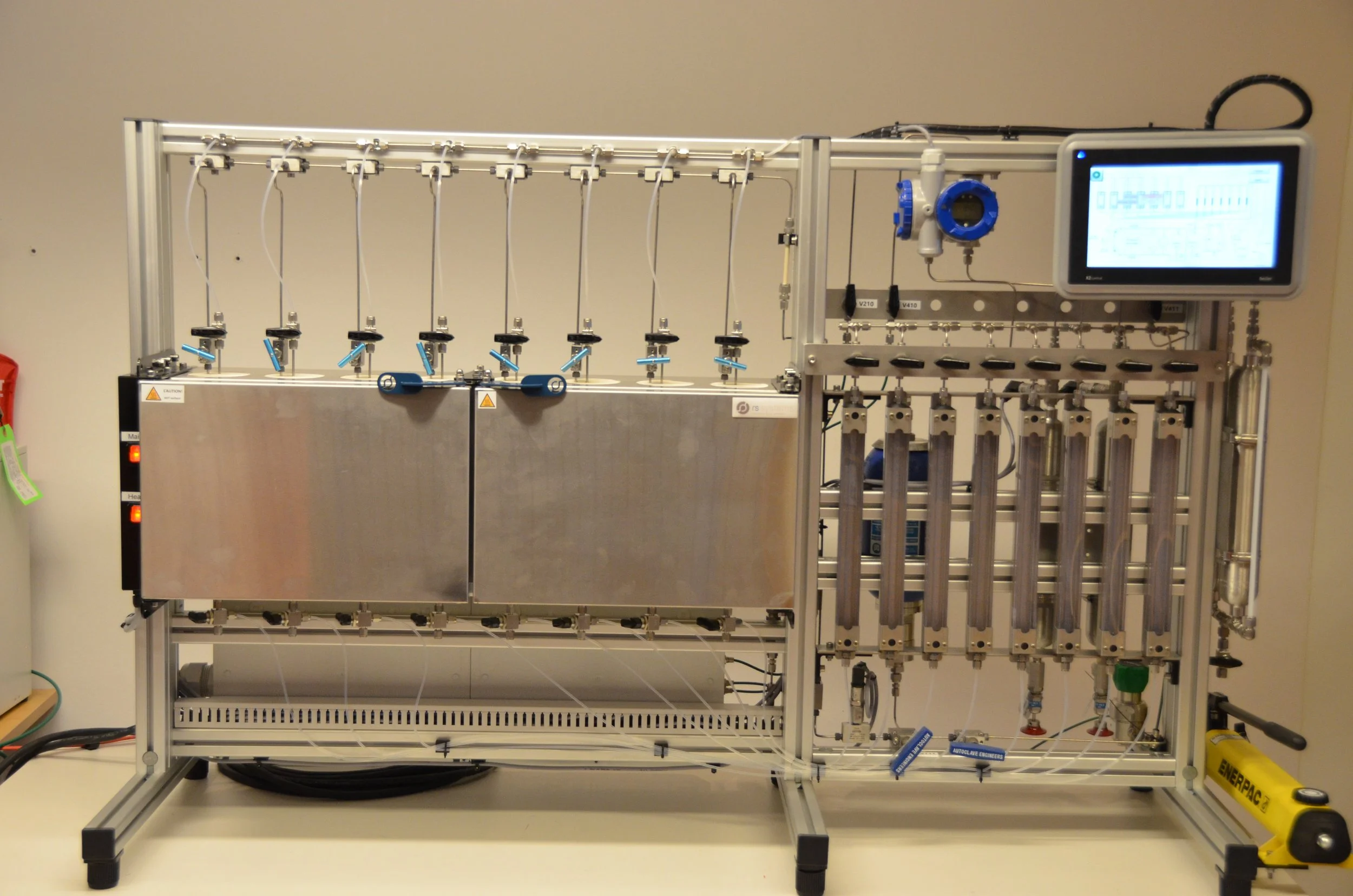

Banchtop PcRI rig with 8 low pressure visual separators.

Banchtop PcRI rig with 8 low pressure visual separators.

Sleeve with ports for resistivity probes.

Sleeve with ports for resistivity probes.

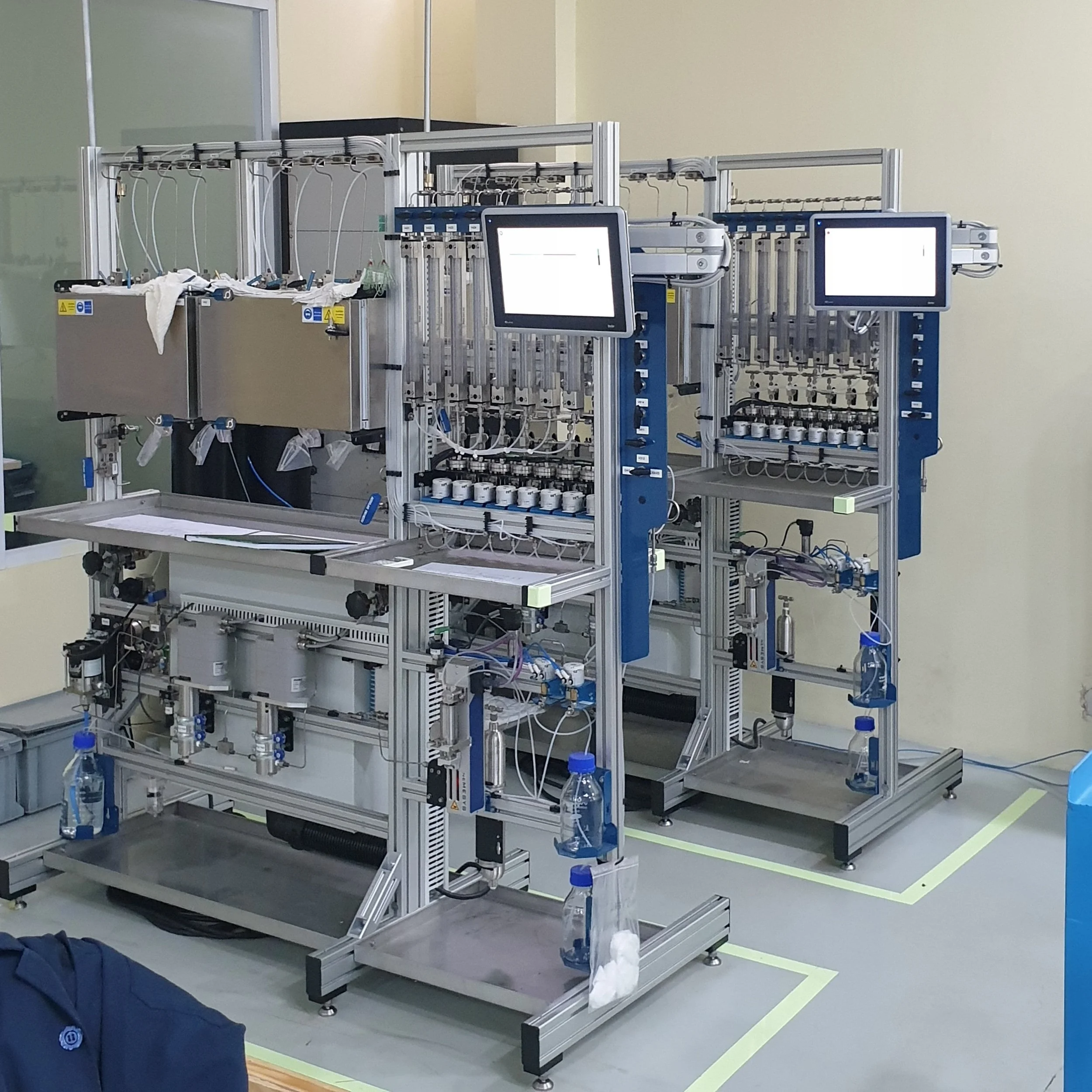

Two PcRI rigs delivered to customer.

Two PcRI rigs delivered to customer.
